COMMERCIAL AND INDUSTRIAL ESS ( Battery Storage)
COMMERCIAL AND INDUSTRIAL ESS ( Battery Storage)
●Peak-to-peak and demand control
●Intelligent energy management system
●Improvement of grid stability
●Increase renewable energy integration capacity
Add to inquiry
●Intelligent energy management system
●Improvement of grid stability
●Increase renewable energy integration capacity
| Specifications | |||

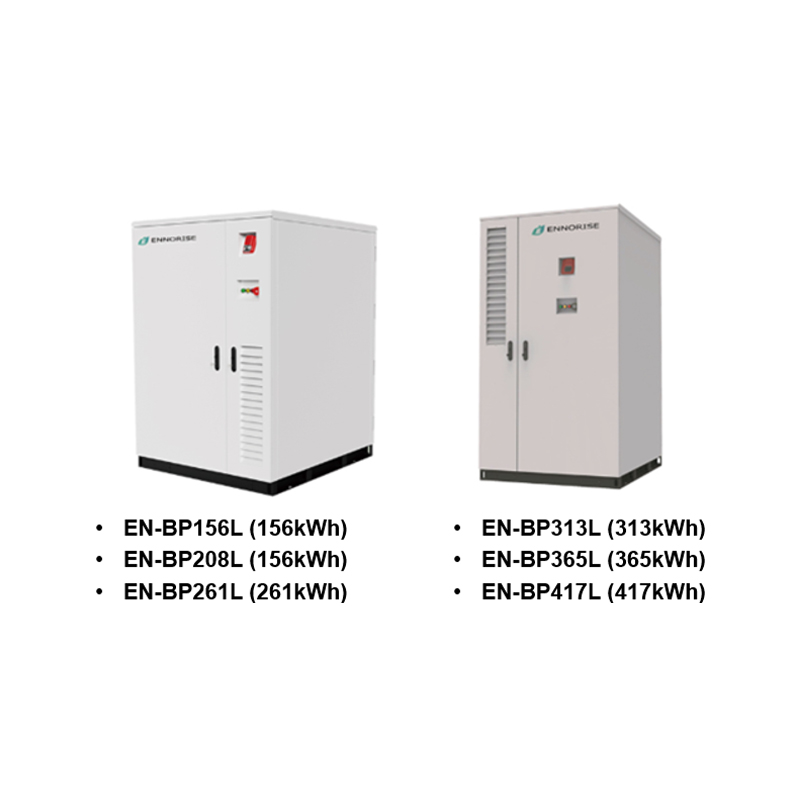

| Model | EN-BP313L | EN-BP365L | EN-BP417L |
| Review |
|
||
| Normal Energy | 313.5kWh | 365.7kWh | 417.9kWh |
| Nominal Voltage | 998.4V | 1164.8V | 1331.2V |
| Cell Specification | 3.2V 314Ah | ||
| Battery Pack Energy | 52.24kWh | ||
| String Configuration | 1P312S | 1P364S | 1P416S |
| Number of Strings | 1 | ||
| Operating Voltage | 873.6V -1123.3V | 1019.2V-1310.4V | 1164.8V -1497.6V |
| Dimension (W/D/H) | 1308mm x 1552mm x 2380mm | ||
| Weight | ≤3600kg | ||
| Protection rating | IP54 | ||
| Cooling Method | Liquid cooling | ||
| Operating temperature | -25°C ~ +55°C | ||
| Relative Humidity | 15%~90%(Non-condensing) | ||
| Operating altitude | 3000m | ||
| Cycle Life | ≥8000 cycles(@25°C, 0.5P/0.5P) | ||
| Communication ports | CAN/RS485/LAN | ||
| Product certification | IEC/EN 62619, IEC/EN 61000, UN38.3, MSDS | ||
| Specifications | |||
| Model | EN-SY0526A | EN-SY0520A | EN-SY0515A |
| Review |
|
||
| Normal Energy | 261kWh | 208kWh | 156kWh |
| Nominal Voltage | 832V | 665.6V | 499.2V |
| Cell Specification | 3.2V 314Ah | ||
| Battery Pack Energy | 52.24kWh | ||
| String Configuration | 1P260S | 1P208S | 1P156S |
| Number of Strings | 1 | ||
| Operating Voltage | 728~949V | 582.4~759.2V | 436.8~569.4V |
| Dimension (W/D/H) | 1300mm x 1400mm x 1890mm | ||
| Weight | Approximately 2400 kg | Approximately 2000 kg | Approximately 1700 kg |
| Protection rating | IP54 | ||
| 冷卻方式 | Liquid cooling | ||
| Cooling Method | -25°C ~ +55°C | ||
| Operating temperature | 15%~90%(Non-condensing) | ||
| Operating altitude | 3000m | ||
| Cycle Life | ≥8000 cycles(@25°C, 0.5P/0.5P) | ||
| Communication ports | CAN/RS485/LAN | ||
| Product certification | IEC/EN 62619, IEC/EN 61000, UN38.3, MSDS | ||
